Plans

"Hill Residence" — architect not yet identified. Seller-stated value $100,000 unverified · medium

Sheets seen: floor plans, colored elevations (A-204/A-205), perspectives (A-501). No cover sheet, area table, sections, structural or detail sheets seen. Phase (SD/DD/CD) unknown.

Area takeoff

Rough takeoff from dimension strings on the photographed Hill Residence sheets (±10%) unverified · lowReplace with the architect's area table.

Main floor, conditioned2,900 sf
Lower level, conditioned1,750 sf
Garage900 sf
Decks / patios500 sf
Crawl space (unfinished)1,200 sf
Conditioned total4,650 sf

How the house is zoned

Rooms traced from the seller's floor plans and colored by who uses them. North is up; hover a room for its zone. Outlines are approximate — the sheets are photographs.

Main floorTraced from the seller's plans · approximate
Primary bath — Family (private)Primary closets — Family (private)Primary bedroom — Family (private)Primary deck — Decks & patiosBar — Family (private)Stair — SharedKitchen / dining / living — Family (private)Entry — Shared2nd kitchen (and coat) — Family (private)Powder (and pantry) — Family (private)Laundry — SharedMain deck — Decks & patiosGuest suite — Family (private)Guest deck — Decks & patiosGuest bath (and closets) — Family (private)Mudroom — SharedGarage — SharedCovered entry — Decks & patiosN
Lower level — as drawnTraced from the seller's plans · approximate
Bedroom 1 — Family (private)Shared bath 1 — Family (private)Pool / game room — Family (private)Basement living — Family (private)Bunk room — Family (private)Guest suite — Family (private)Hall (laundry, closets) — Family (private)Suite bath — Family (private)Shared bath 2 — Family (private)Stair — SharedWalkout patio — Decks & patiosCrawl space (under the garage) — UnfinishedN

Lock-off concept

A rentable lower level: the owners keep the stair, and everything else locks off behind a door at the stair foot, with its own entry from the walkout patio. Numbered markers match the list.

Lower level — lock-off conceptTraced from the seller's plans · approximate
Bedroom 1 — Lock-off rentalShared bath 1 — Lock-off rentalPool / game room — Lock-off rentalBasement living — Lock-off rentalBunk room — Lock-off rentalGuest suite — Lock-off rentalHall (laundry, closets) — Lock-off rentalSuite bath — Lock-off rentalShared bath 2 — Lock-off rentalFamily stair — SharedWalkout patio — Decks & patiosCrawl space (under the garage) — Unfinished1 Lockable door (at the stair foot) — New or changed2 Kitchenette (in the laundry closet) — New or changed3 Private entry (from the patio) — New or changedN
What changes

Plans value check

Design cost to reach a permit-ready set (three paths)
ItemLowMidHigh
Finish Hill plans as-isIncluded plans + completion to permit set$60,000$90,000$130,000
Modify for lock-offCompletion + lock-off revision$75,000$115,000$170,000
Start fresh with local architectFull-service fee from scratch (upper bound); forfeits included plans$304,840$485,700$736,320

Architect fee assumption: 8%–12% of hard cost unverified · low

Row 3 is a full-service fee from scratch while row 1 only completes existing drawings, so the gap is an upper bound on what the included plans save — and only if the architect confirms they are at least design-development stage and the HOA has not rejected them.

Drawings

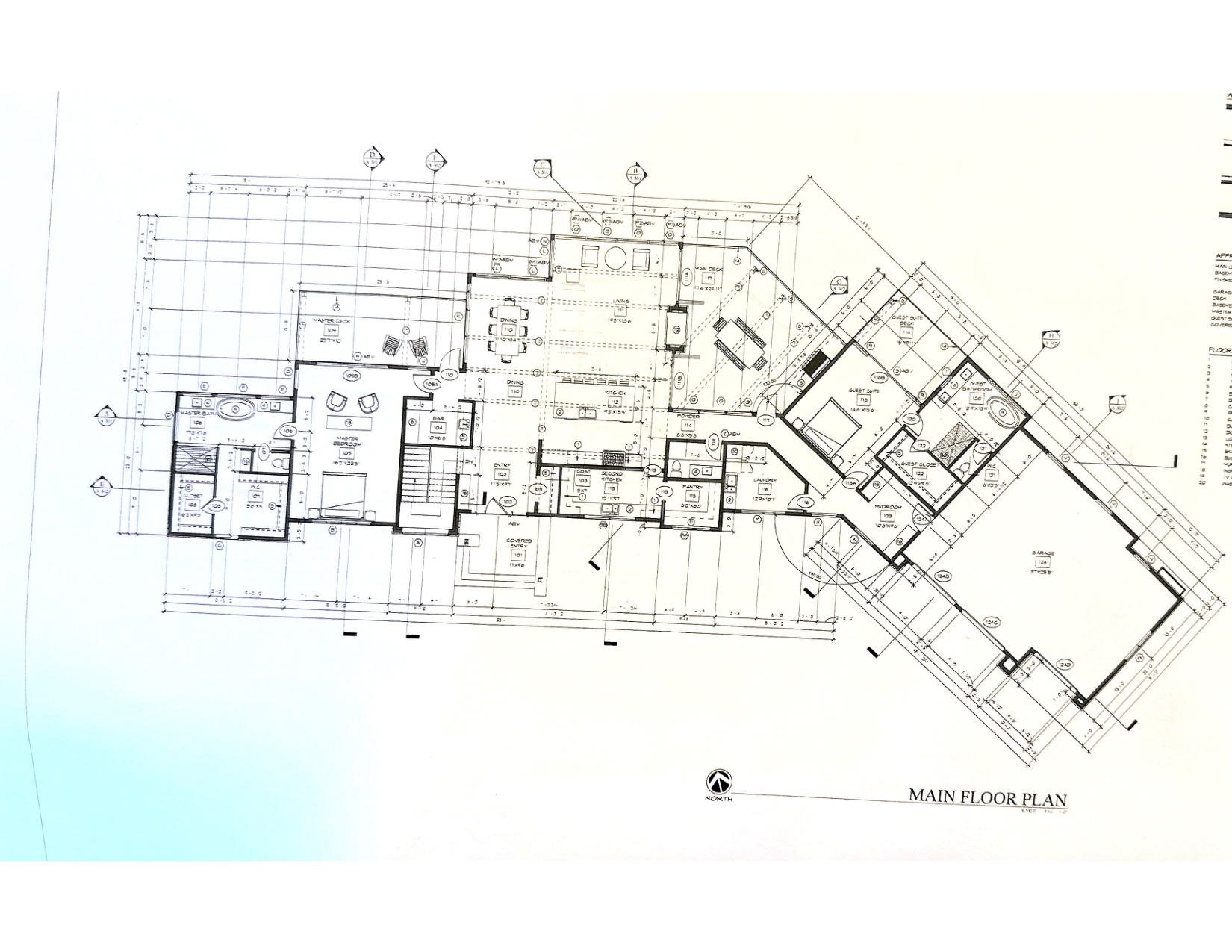

Main floor plan
Main floor plan. Primary suite (north end), kitchen/dining/living with decks, guest suite and garage on the angled south wing. PDF · Full size

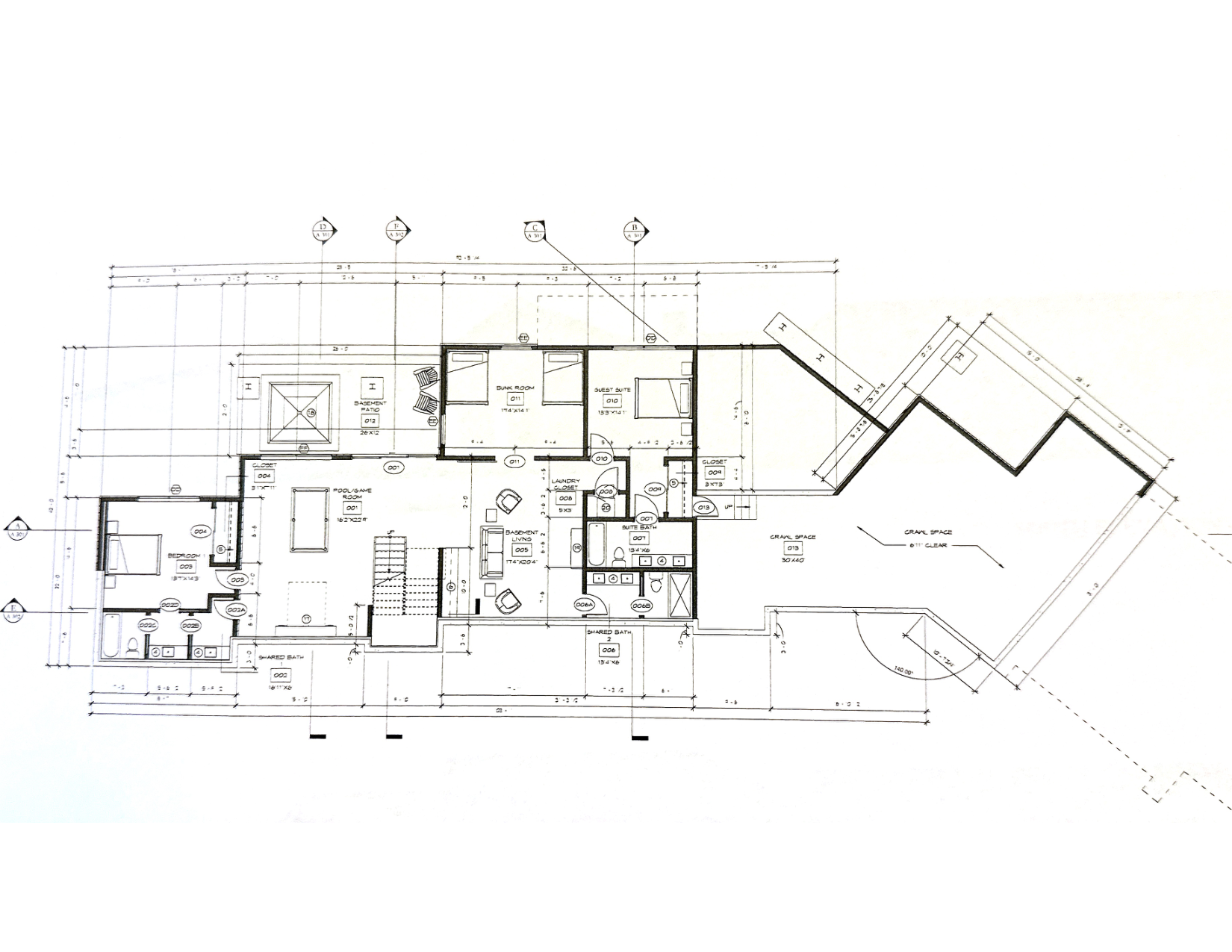

Lower level plan
Lower level plan. Game room, basement living, bunk room, guest suite, bedroom, shared baths, laundry; crawl space under garage wing. PDF · Full size

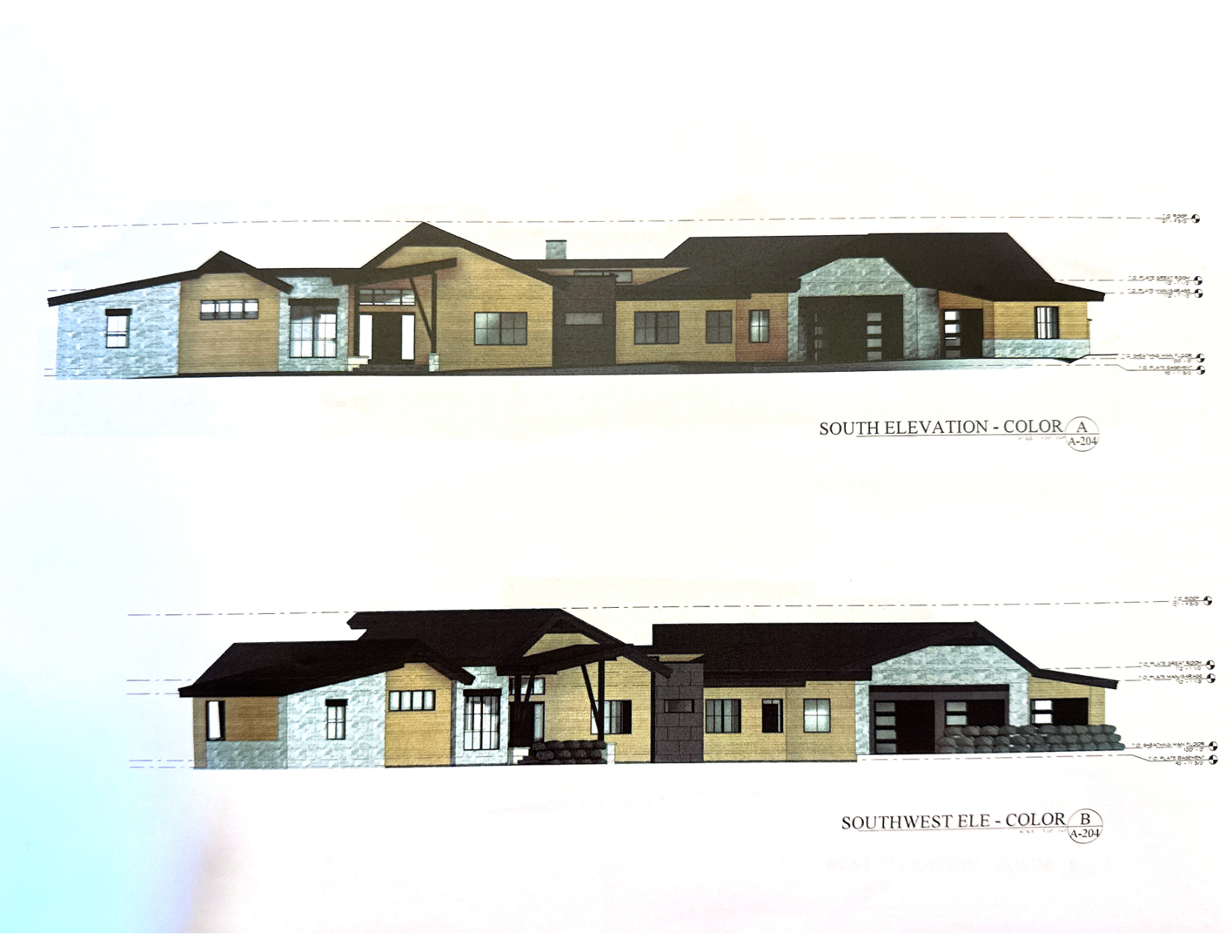

South & southwest elevations
South & southwest elevations. Sheet A-204. Wood siding, stone, dark standing-seam roofs. PDF · Full size

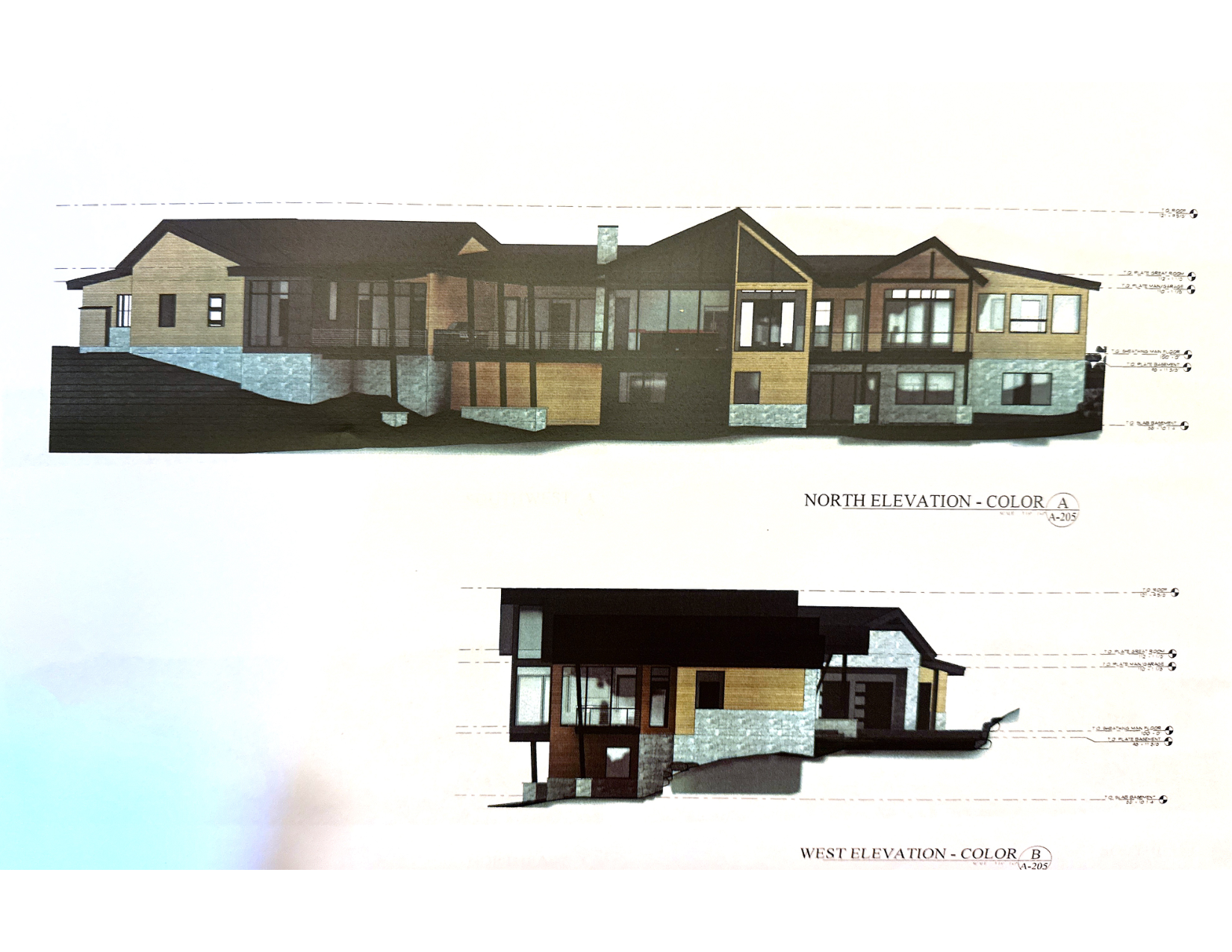

North & west elevations
North & west elevations. Sheet A-205. PDF · Full size

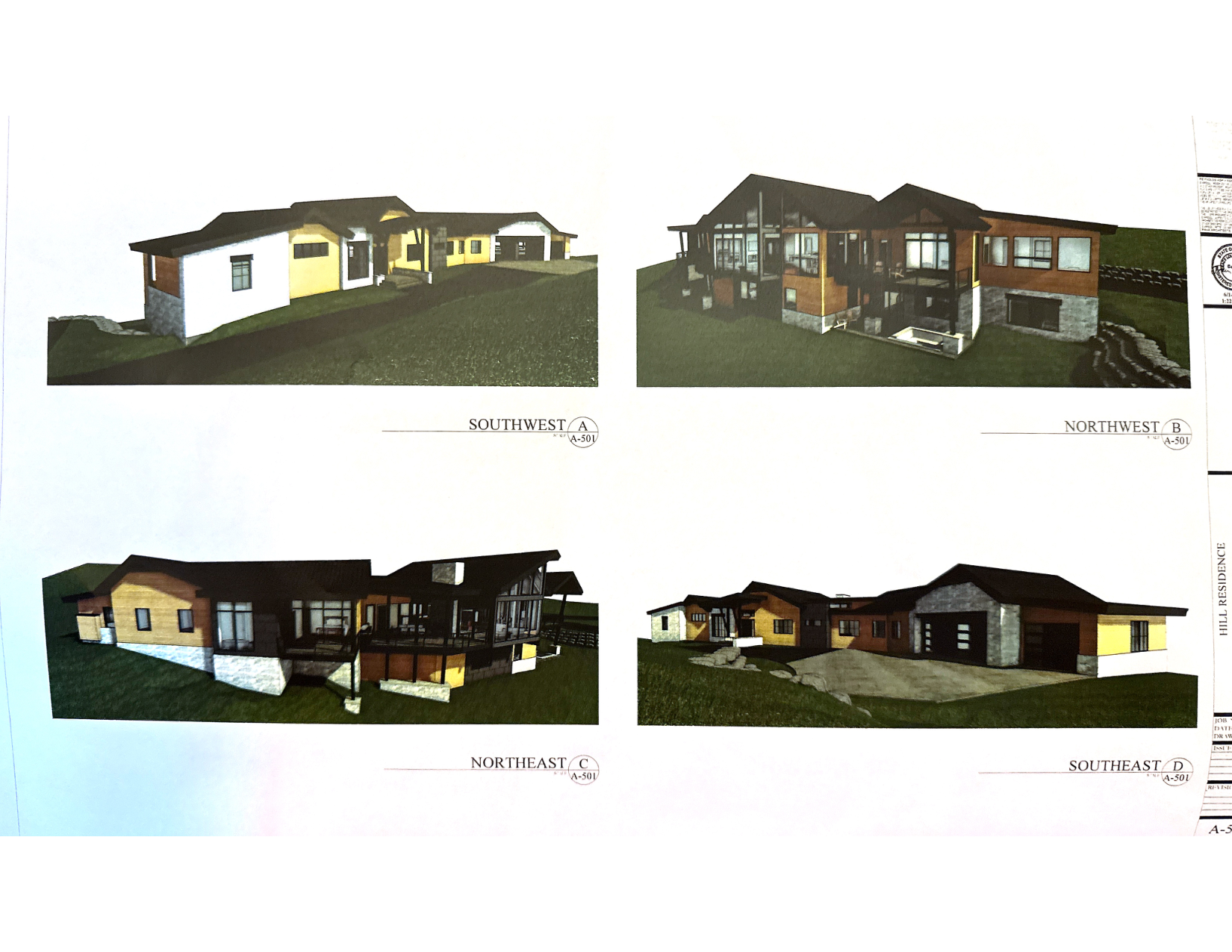

3D perspectives
3D perspectives. Sheet A-501. Four exterior perspectives, "Hill Residence". PDF · Full size
